| Place of Origin: | Made in china |
|---|---|
| Brand Name: | No brand or OEM |
| Certification: | No Certificate |
| Model Number: | S17M |
| Operate System: | Windows Mobile 6. X | Keyboard: | 27 Key Number+control Key |
|---|---|---|---|
| Software: | SurvCE, FieldGenius | Power: | Li-battery, 6500mAh, 3.7V |
| Size: | 200mm X 96mm X 32mm | Weight: | 515g (Wiith Battery) |

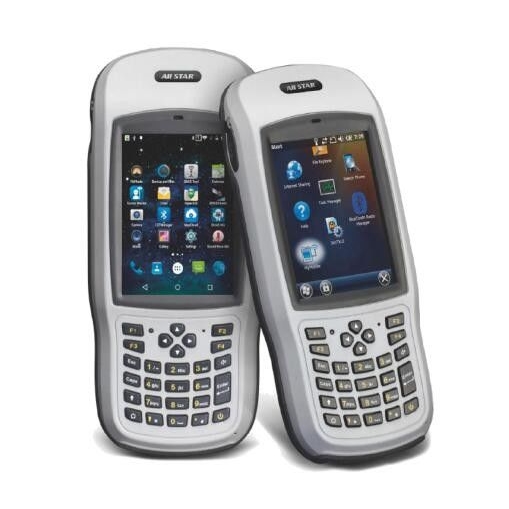

Controller S17M for G9 & G10 GNSS Receiver
Specifications
| CPU | 512M |
| ROM | 4GB |
| Operate system | Windows Mobile 6.X |
| Keyboard | 27 key number+control key |
| Screen resolution | 480 x 640 |
| Camera | 5M pixel |
| Size | 200mm x 96mm x 32mm |
| Weight | 515g (including battery) |
| GNSS performance | |
| GNSS | GPSL1+BDB1/GPS L 1+GLONASS G1 |
| Channel | 72 |
| Raw Data | – |
| NMEA-0183 | Support |
| Rove/Base | – |
| Positiong accuracy | |
| Single | 2.5m |
| SBAS | 2m |
| RTK | – |
| Communication and data storage | |
| WIFI | Support |
| USB interface | Type B USB |
| Interface | DB9 standard series port |
| Storage extension | TF card, upto 32GB |
| Long distance bluetooth | Optional |
| Standard bluetooth | V2.1 |
| NFC | – |
| Voice communication | nonsupport |
| GSM/3G (WCDMA) | 3G (WCDMA) |
| Power | |
| Power input | DC5V, 1A |
| Removable Li-baterry | 6,500mAh, 3. 7V |
| Environment | |
| Work environment | ‐20℃ ~ +60℃ |
| Storage temprature | ‐30℃ ~ +70℃ |
| Dustproof waterproof grade | IP65 |
| Anti-dropping | 1.2m free dropping |
| Accessory | |
| Standard accessories | Power adaptor, USB cable, battery, series port |
| cable,stylus, | |
| hand strap, screen film,Operational guidelines | |
| Optional accessories | Bracket, external antenna, external antenna patch cord |
| Software support | |
| Software | SurvCE, FieldGenius |
