| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SOUTH |
| Model Number: | NTS-362R6LNB |
| Color: | Yellow/Gray | Accuracy: | 2″ |
|---|---|---|---|
| Prismless Range: | 600m | Compensator: | Dual Axies Compensator |
| Water/dust Proof Class: | IP54 | Battery: | Rechargeable Lithium Battery |

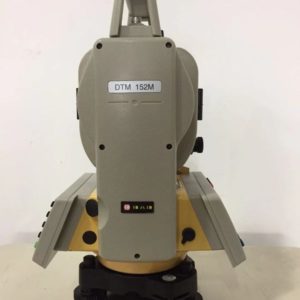

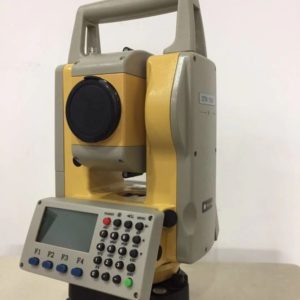

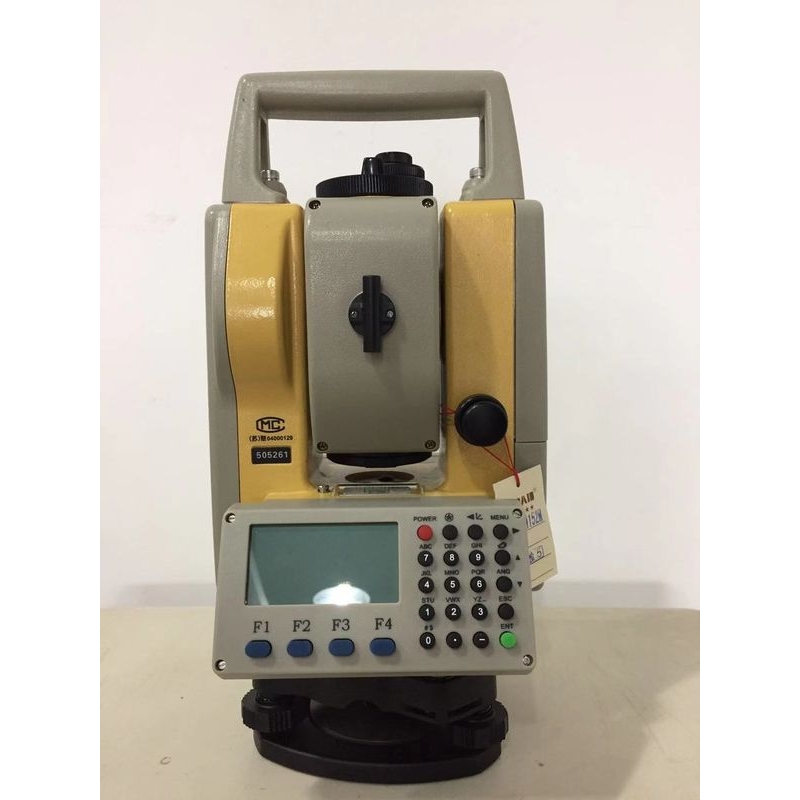

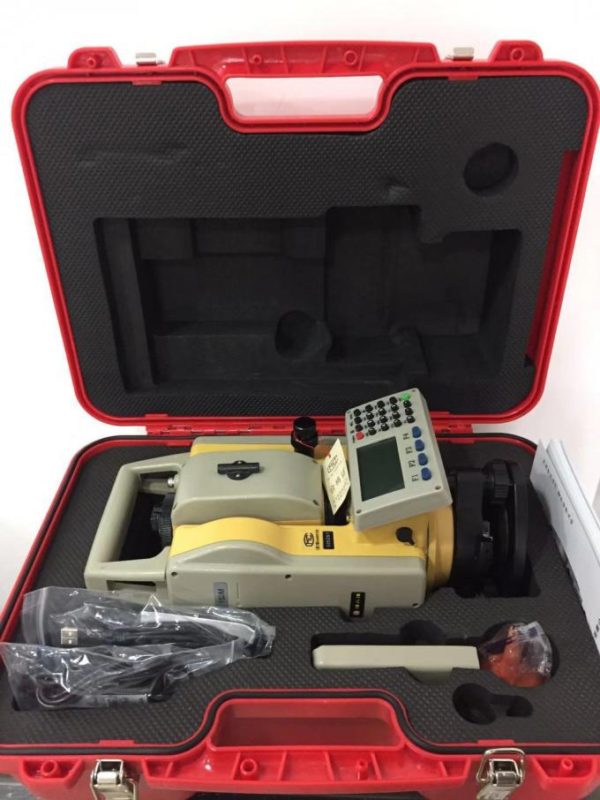

SOUTH Brand NTS-362R6L with 2″ accuracy Total station for surveying equipment
Specifications
| Model | NTS362R6L | |||
| Distance Measurement | ||||
| Max.Range | Reflectorless | 600m | ||
| Single prism | 5.0km | |||
| 3 prism | 8.0km | |||
| Accuracy | Reflectorless | Fine | 5+2ppm | |
| Tracking | 10+2ppm | |||
| Reflector | Fine | 2+2ppm | ||
| Tracking | 5+2ppm | |||
| IR-sheet | 5+2ppm | |||
| Reading | Max:99999999.9999 m Min:0.1 mm | |||
| Measuring Time | Reflectorless | Fine mode: <1.2s ; Tracking mode:0.5s | ||
| Reflector | Fine mode: <1.2s ; Tracking mode:<0.5s IR sheet mode:<1.2s | |||
| Atmospheric Correction | Manual input, Auto correction | |||
| Prism Constant | Manual input, Auto correction | |||
| ANGLE MEASUREMENT | ||||
| Measuring method | Absolute continuous | |||
| Diameter of Raster Disk | 79mm | |||
| Minimum reading | 1″/ 5″Selectable | |||
| Accuracy | 2″ | |||
| Detection method | Horizontal:Dual /Vertical:Dual | |||
| TELESCOPE | ||||
| Image | Erect | |||
| Tube length | 154mm | |||
| Effective aperture | 45mm,(EDM:50mm) | |||
| Magnification | 30× | |||
| Field of view | 1°30′ | |||
| Minimum Focusing Distance | 1m | |||
| Resolving Power | 3″ | |||
| AUTO COMPENSATOR | ||||
| System | Dual axis Liquid-electric | |||
| Working range | ±3′ | |||
| Accuracy | 1″ | |||
| VIAL | ||||
| Plate vial | 30″/2mm | |||
| Circular vial | 8′/2mm | |||
| OPTICAL PLUMMET | ||||
| Image | Erect | |||
| Magnification | 3× | |||
| Focussing range | 0.5m~∞ | |||
| Field of view | 5° | |||
| ON-BOARD BATTERY | ||||
| Type | Rechargeable Li-on battery | |||
| Voltage | DC 6v | |||
| Continuous operation time | 8 hrs | |||
| OTHERS | ||||
| IP stand | IP 65 | |||
| Display | LCD,6 lines,digital | |||
| Data storage | Internal memory | 2M,ready for 17,000 data blocks | ||
| External memory | SD card 2GB, ready for approx,17,000,000 data blocks | |||
| Temperature | -20°~+50℃ | |||
| Dimension and Weight | 160×150×330mm, 5.2kg | |||
