| Place of Origin: | China |
|---|---|
| Brand Name: | Geoallen or OEM brand |
| Certification: | CE certificate |
| Model Number: | FRE203 |
| Operation Range: | Dia 500m | Color: | Yellow / Orange |
|---|---|---|---|
| Rotating Speed: | 0/60/120/300/600 R.p.m. | Scanning Angle: | 0/10°/45°/90°/180° |

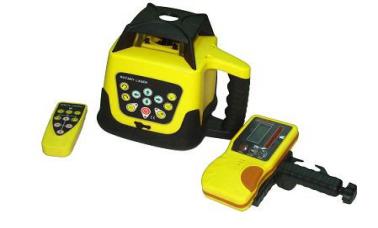

Rotaing Laser FRE203 red / green beam with high quality accuracy
Specifications
| Leveling Accuracy | Horizontal:±20″ |
| Vertical:±20″ | |
| Leveling Range | ±5º |
| Measuring Range | Diameter:500m (Using the laser detector) |
| Spinning Speed | 0,60,120,300,600 r.p.m |
| Directional-Scanning Angle | 0º,10 º,45 º,90 º,180 º |
| Slope-adjusting Range | ±5º(Bi-directional) |
| Light Source | Laser Diode, wavelength:635nm |
| Down Point Diode | Accuracy:±1mm/1.5m |
| Wavelength:650nm | |
| Remote Controlling Distance | Approximately 20m |
| Working Temperature | -20℃— +50℃(-4ºF– +122ºF) |
| Power Supply | DC 4.8-6V |
| (4 section of C size NI-MH rechargeable batteries) | |
| Hours In Continuous Use | Approximately 20 hours |
| Water-proof | IP 64 |
| Dimension | 160(L)×160(W)×185(H)mm |
| Weight | 3.0kg |
