| Place of Origin: | China |
|---|---|
| Brand Name: | No brand or OEM |
| Certification: | CE certificate |
| Model Number: | MG8 Serial |
| Model Name: | MG858S | Operating System: | Windows |
|---|---|---|---|
| Accuarcy: | Single-point: 1.2m | RTK: | Horizontal: 1cm+1ppm Vercial: 2cm+1ppm |
| Memory: | RAM 258MB+ ROM 4G | Come With: | Wifi/ Bluetooth / WCDMA |
| CPU: | MG8PLUS 833HZ | Positioning Time: | RTK Initializationa 120s |
| Working Hours: | 14hours | Working Temperature: | -20℃- +60℃ |
| Storage Temperature: | -30℃- +70℃ | Color: | Yellow |
| Waterproof: | IP66 |

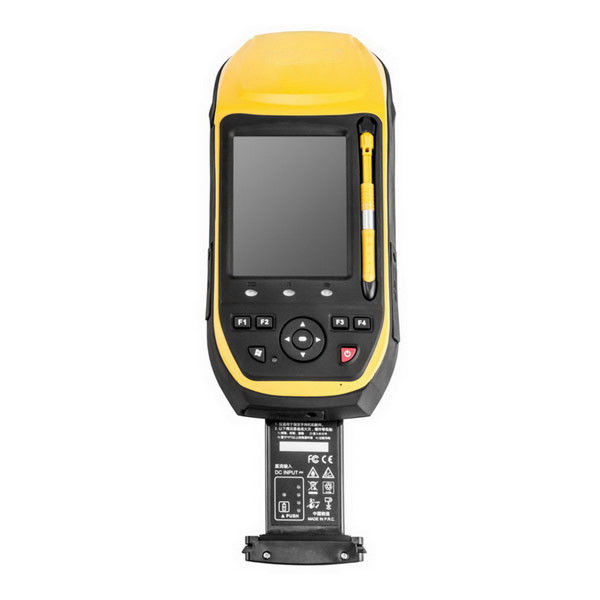

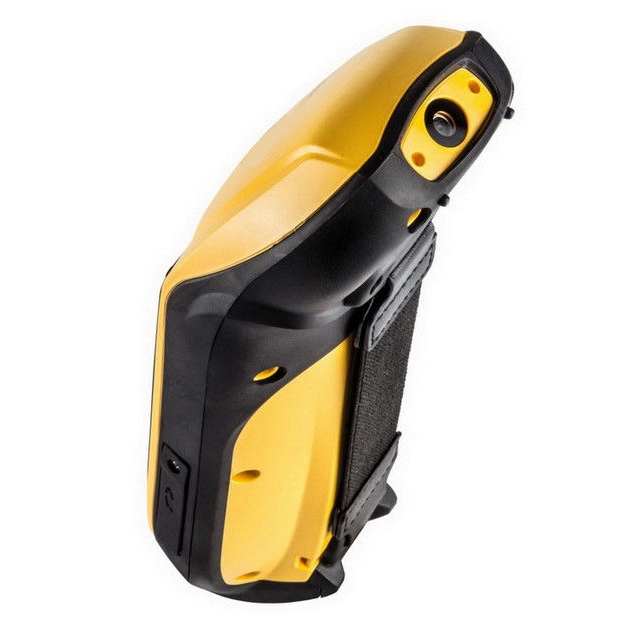

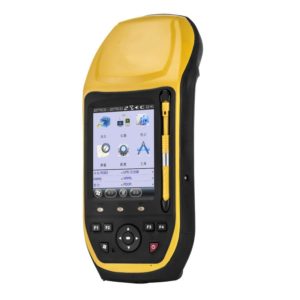

MG858S 372 channels handheld gnss with GPS/GLONASS/Beidou L1/B1 support Wifi/Bluetooth/WCDMA
Specifications
| Operating System | Windows mobile6.5 professional | ||||||
| CPU: MG8PLUS 833MHz | |||||||
| GNSS | Channels: 372 | ||||||
| GPS:L1,BEIDOU: B1,GLONASS: L1 | |||||||
| reserve upgrade for GALILEO,QZSS system | |||||||
| Accuracy | Single-point: 1.2m | ||||||
| SBAS: 0.3m | |||||||
| DGPS: 0.2m | |||||||
| RTK: horizontal: 1cm+1ppm;Vertical: 2cm+1ppm | |||||||
| Positioning Time | Cold start:＜60s,Low-temperature start:＜30s,Warm start:＜10s | ||||||
| RTK initialization: 120s | |||||||
| Memory | RAM: 258MB(Optional 512MB) | ||||||
| ROM:4G(expand to 32G) | |||||||
| Memory expansion:support SD card storage expansion | |||||||
| Communication | Wireless communication: support WIFI,Bluetooth | ||||||
| Network communication: standard 3.75G | |||||||
| WCDMA network communication,sopport for voice calls | |||||||
| USB: USB2.0 interface,support for USB OTG | |||||||
| Screen | 3.7inch Blanview TFT transflective screen,resolution 640*480 pixels | ||||||
| Power | 37.7W smart Li-ion battery,removable,with | ||||||
| electricity indicator and temperature control chip | |||||||
| Working time: typical 14 hours | |||||||
| Environment | Working temperature: -20℃-+60℃ | ||||||
| Storage temperature:-30℃-+70℃ | |||||||
| Water/dustproof: IP66(Optional IP67) | |||||||
| Shock:1.5meters drop to the hard ground without damage | |||||||
| Humidity:95% non-condensing | |||||||
| Extended Function | Camere: 5 mega pixels, support auto focus | ||||||
| Support a microphone recording | |||||||
