| Place of Origin: | CHINA |
|---|---|
| Brand Name: | GEOALLEN OR OEM BRAND |
| Model Number: | GTS-332R8 |
| Color: | Yellow/orange | Accuracy: | 2″ |
|---|---|---|---|
| Reflectorless Range: | 800m | Compensator: | Dual Axies Compensator |
| Water/dust Proof Class: | IP54 | Battery: | Rechargeable Li-on Battery |

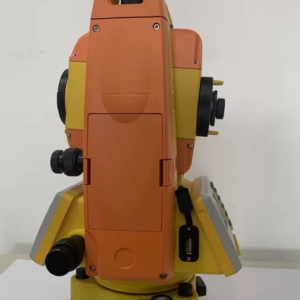

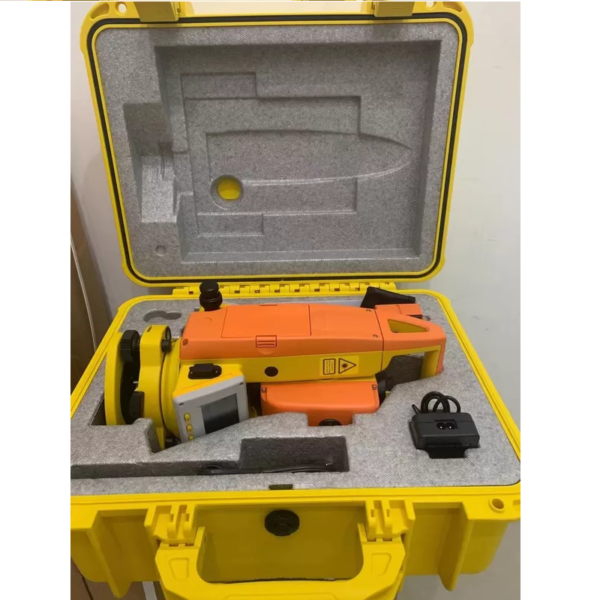

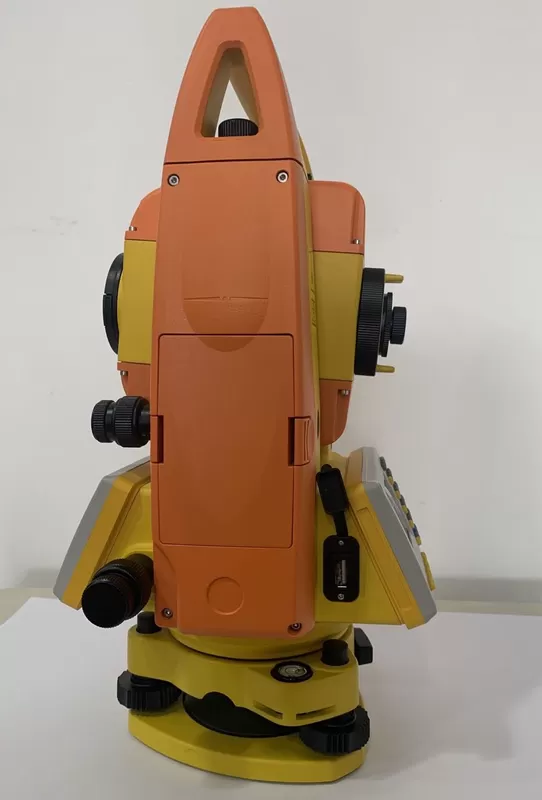

GTS-332R8 GEOALLEN brand total station with bluetooth survey equipment
Specifications
| GTS-332R8 | |||
| DISTANCE MEASURING | |||
| Max. Distance | one prism | 3.5KM | |
| (good weather) | reflecting paper | 1000m (based on different condition) | |
| prismless | 800m (based on different condition) | ||
| Display | Max:999999.99M Min:1MM | ||
| Accuracy | 2+2PPM(with prism), 5+2PPM(no prism, fine) | ||
| Measuring time | fine: 1.2sec., tracing: 0.5sec. | ||
| Wether constance change | automatic change after input constance | ||
| Prism constance change | automatic change after input constance | ||
| ANGLE MEASURING | |||
| Measurment way | absolute encoding | ||
| Crosshair plate diam. | 79MM | ||
| Min. Reading | 1″/5″ optional | ||
| Accuracy | 2″ | ||
| VERTICAL COMPENSATOR | |||
| System | liquid-electric detection | ||
| Working range | +/-6′ | ||
| Precision | 1″ | ||
| LEVEL SENSITIVITY | |||
| Plate level | 30″/2mm | ||
| Cicular level | 8’/2mm | ||
| TELESCOPE | |||
| Image | erect | ||
| Length of telescope | 152MM | ||
| Dia. of objective len’s | telescope:45mm/distance measure:47mm | ||
| Magnificant | 30* | ||
| Field of view | 1° 30′ | ||
| Min. focus | 1.5m | ||
| LASER PLUMMET | |||
| Laser Power | 0.5mW | ||
| Laser class | ClassII | ||
| SOFTWARE AND MEMORY | |||
| On board software functions | REM,MLM,Area Calculation,Setting Z Coordinate of Occupied Point | ||
| Point to line measurement,Road,Stake Out,Resection | |||
| data collection,Angle measurement,Distance | |||
| Coordinate measurement,etc. | |||
| INTEMAL MEMORY | 2000KB (record 20000~25000 point) | ||
| DATA COMMUNICATION PORT | |||
| Type | USB | ||
| Bluetooth | Standard | ||
| DISPLAY | |||
| Type | dual face | ||
| POWER | |||
| Source | chargeble lithium battery | ||
| Voltage | DC7.4V | ||
| Continues working time | 8H | ||
| MEASURMENT AND WEIGHT | |||
| Dim. | 160*150*340MM | ||
| Weight | 5.4KG | ||
| WATER AND DUST PROOF | IP54 | ||
