| Place of Origin: | China |
|---|---|
| Brand Name: | GEOALLEN OR OEM BRAND |
| Model Number: | GTS 332R5 or GTS335R5 |
| Color: | Yellow/orange | Accuracy: | 2″ Or 5″ |
|---|---|---|---|
| Prismless Range: | 500m | Compensator: | Dual Axies Compensator |
| Water/dust Proof Class: | IP54 | Battery: | Rechargeable Lithium Battery |

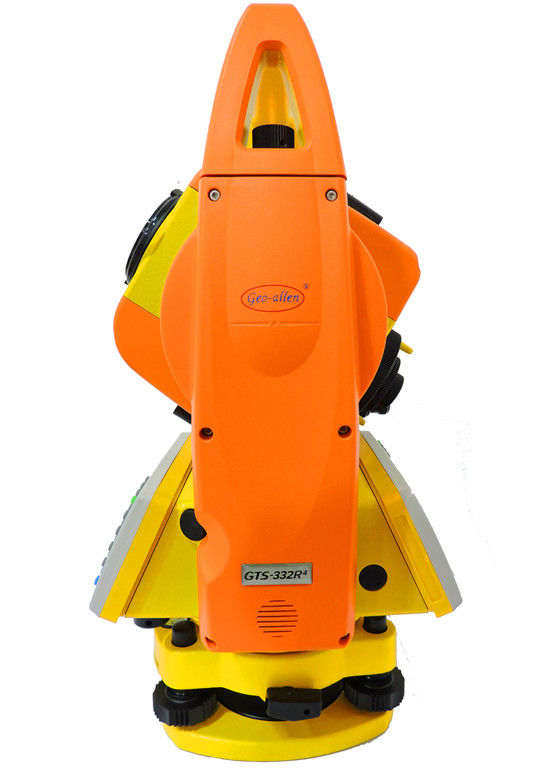

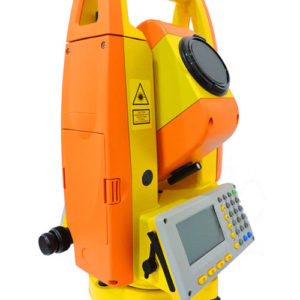

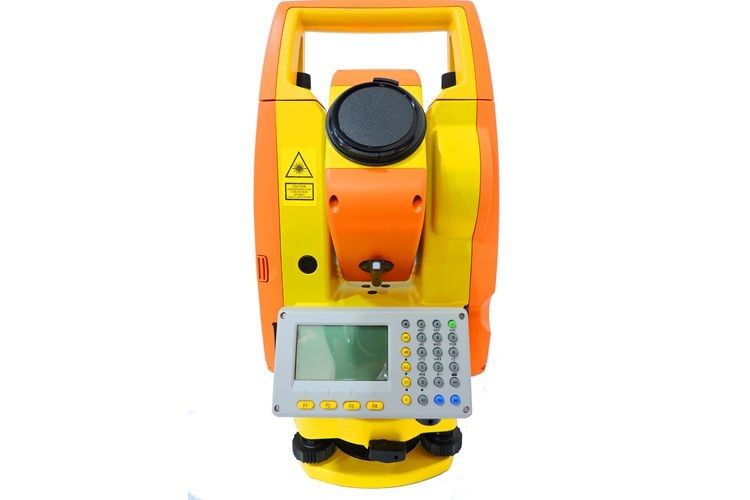

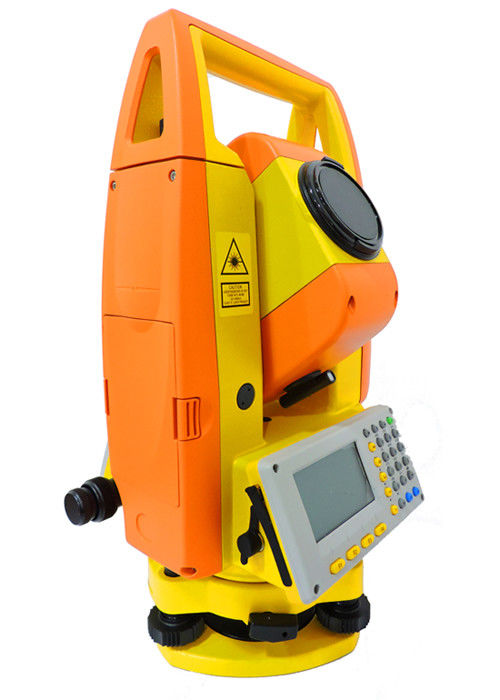

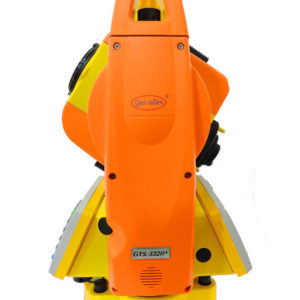

GTS330 2″ / 5″ serial prismless 500m total station for survey and construction
TECHNIAL DATE
| GTS-332R4 | GTS-332R5 | ||
| DISTANCE MEASURING | |||
| Max. Distance | one prism | 3KM | 3.5KM |
| (good weather) | reflecting paper | 800m (based on different condition) | 1000m (based on different condition) |
| prismless | 400m (based on different condition) | 500m (based on different condition) | |
| display | Max:999999.99M Min:1MM | ||
| accuracy | 2+2PPM(with prism), 5+2PPM(no prism, fine) | ||
| measuring time | fine: 1.2sec., tracing: 0.5sec. | ||
| wether constance change | automatic change after input constance | ||
| prism constance change | automatic change after input constance | ||
| ANGLE MEASURING | |||
| measurment way | absolute encode | ||
| Crosshair plate diam. | 79MM | ||
| Min. Reading | 1″/5″ optional | ||
| accuracy | 2″ | ||
| VERTICAL COMPENSATOR | |||
| system | liquid-electric detection | ||
| working range | +/-4′ | ||
| precision | 1″ | ||
| LEVEL SENSITIVITY | |||
| plate level | 30″/2mm | ||
| cicular level | 8’/2mm | ||
| TELESCOPE | |||
| image | erect | ||
| length of telescope | 152MM | ||
| Diam. of objective len’s | telescope:45mm/distance measure:47mm | ||
| Magnificant | 30* | ||
| Field of view | 1° 30′ | ||
| Min. focus | 1.5m | ||
| SOFTWARE AND MEMORY | |||
| on board software functions | REM,MLM,Area Calculation,Setting Z Coordinate of Occupied Point | ||
| Point to line measurement,Road,Stake Out,Resection | |||
| data collection,Angle measurement,Distance | |||
| Coordinate measurement,etc. | |||
| INTEMAL MEMORY | 2000KB (record 20000~25000 point) | ||
| DATA COMMUNICATION PORT | |||
| type | RS232c | RS232c,USB,SD card reader | |
| DISPLAY | |||
| type | dual face | ||
| POWER | |||
| source | chargeble lithium battery | ||
| voltage | DC7.4V | ||
| continues working time | 8H | ||
| MEASURMENT AND WEIGHT | |||
| dim. | 160*150*340MM | ||
| weight | 5.4KG | ||
| WATER AND DUST PROOF | IP54 | ||
