| Place of Origin: | China |
|---|---|
| Brand Name: | GEOALLEN |
| Model Number: | AL serial |
| Color: | Orange | Magnification: | 24X30X/32X |
|---|---|---|---|
| Image: | Erect | Degree: | 360/400 Degree |

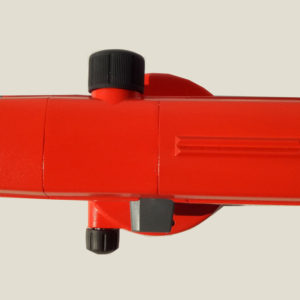

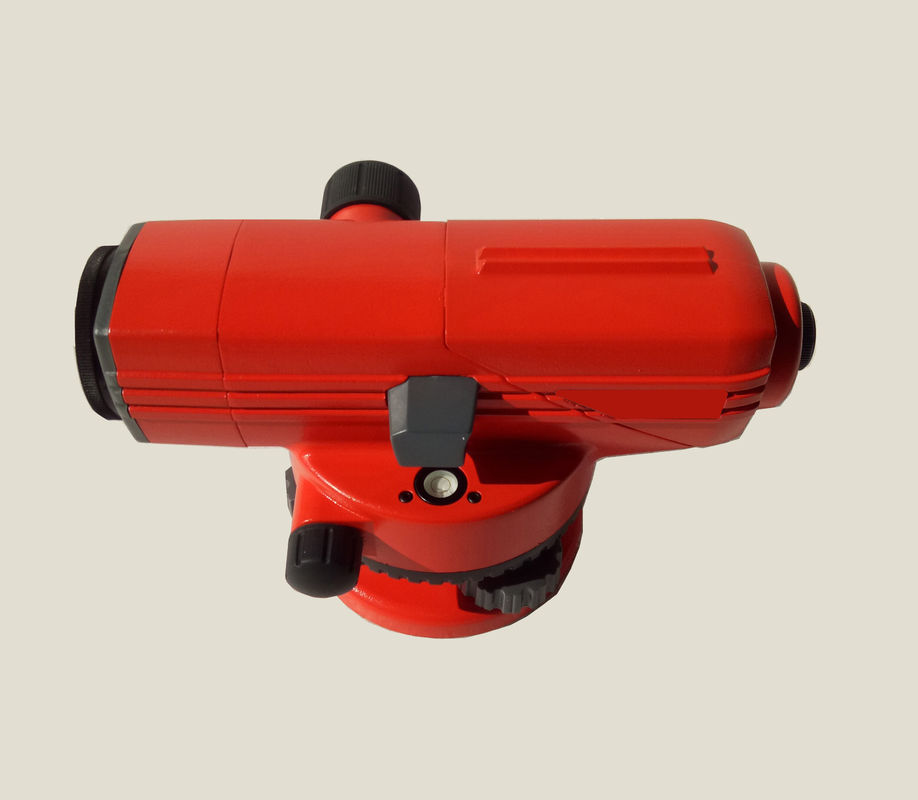

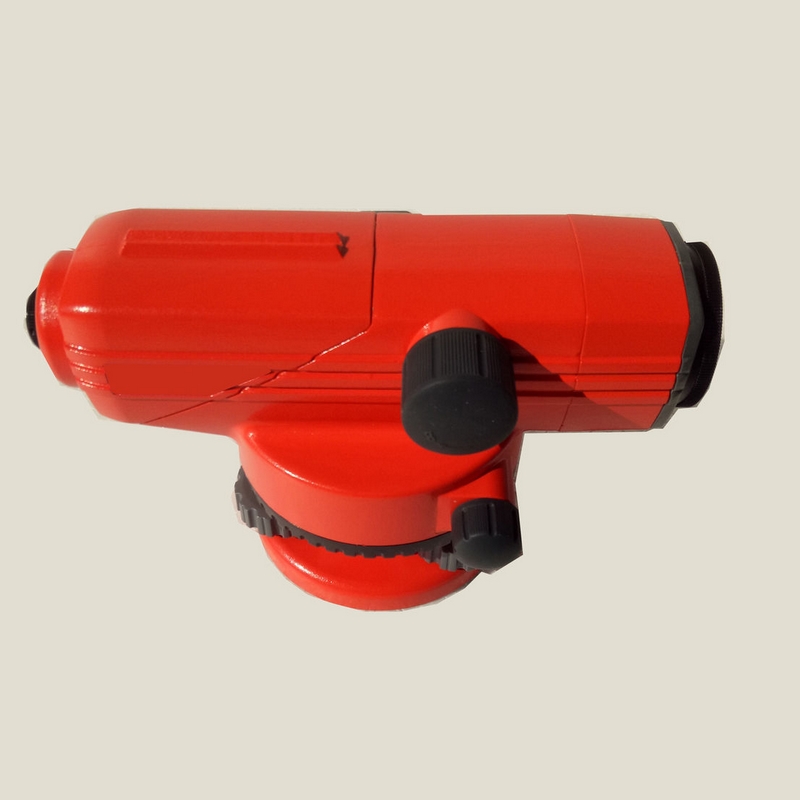

AL serial Auto Level DSZ- D with 24X/30X/32X
| Parts | Type | DSZ3-32D | DSZ3-30D | DSZ3-24D |
| Telescope | Magnification | 32X | 30X | 24X |
| Image | Erect image | |||
| Objective aperture | ≥42mm | ≥36mm | ≥32mm | |
| Min.focusing distance | 0.3mm | |||
| Stadia multiplication constant | 100 | |||
| Stadia additive constant | 0 | |||
| Resolution | ≤4″ | ≤5″ | ≤5.6″ | |
| Compensator | Working range | 15′ | ||
| Compensating error | ≤±0.3″/1′ | |||
| Setting accuracy | ≤±0.5″ | |||
| Scale | Scale graduation range | 360°/400G | ||
| Scale minimum value | 1°/1gon | |||
| Sensitivity of circlar bubble | 8’/2mm | |||
| Base screw | M16 or 5/8″X1/11″ to be select | |||
| Environmental temperature | -25℃～±50℃ | |||
| Carry case | Plastic case(aluminiium case for option with extra cost) | |||
| Parallel plate micrometer | Available for option | |||
