| Place of Origin: | MADE IN CHINA |
|---|---|
| Brand Name: | SOUTH |
| Model Number: | KL-32G |
| Color: | Red / Gray | Magnification: | X32 |
|---|---|---|---|
| Brand: | KOLIDA | Compensator: | Magnetic Damping |

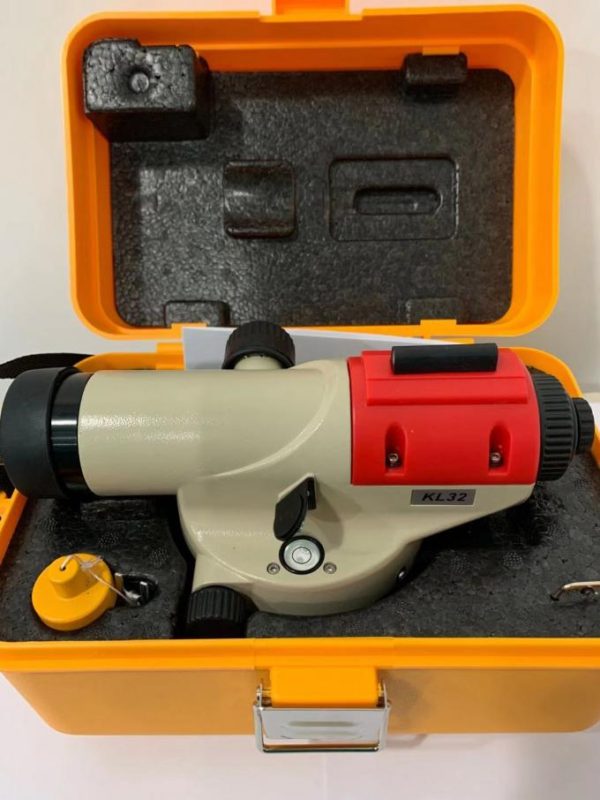

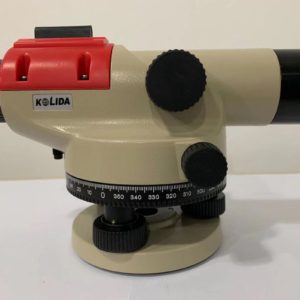

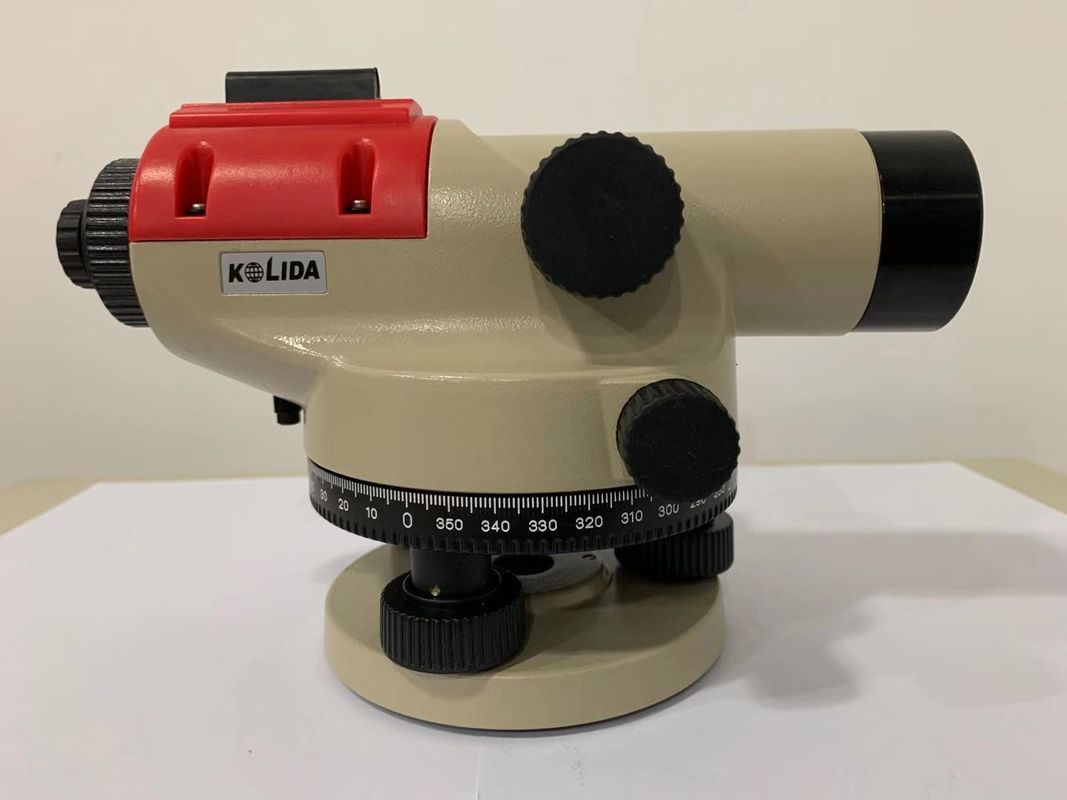

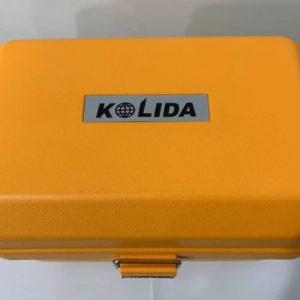

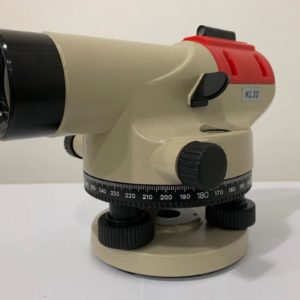

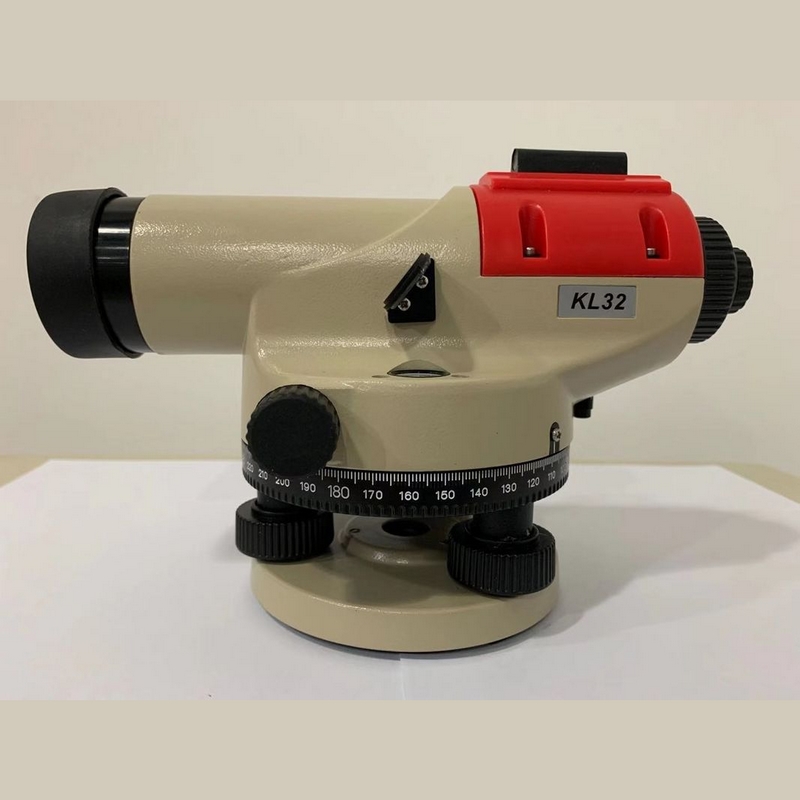

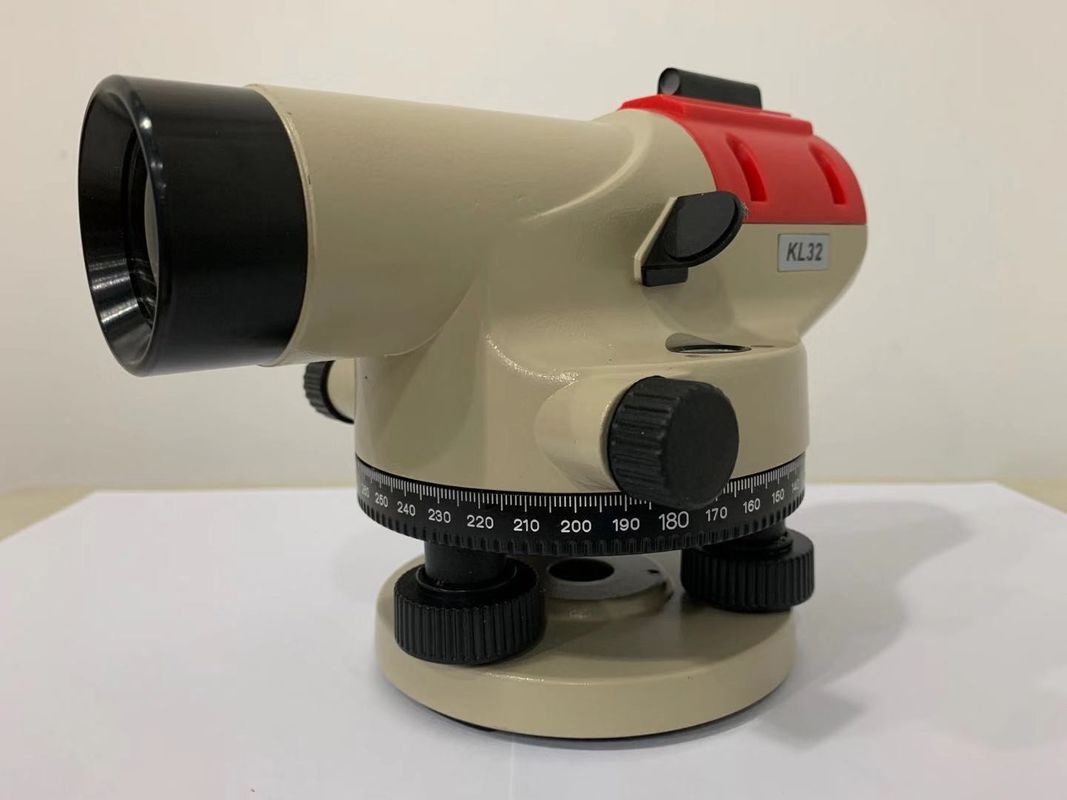

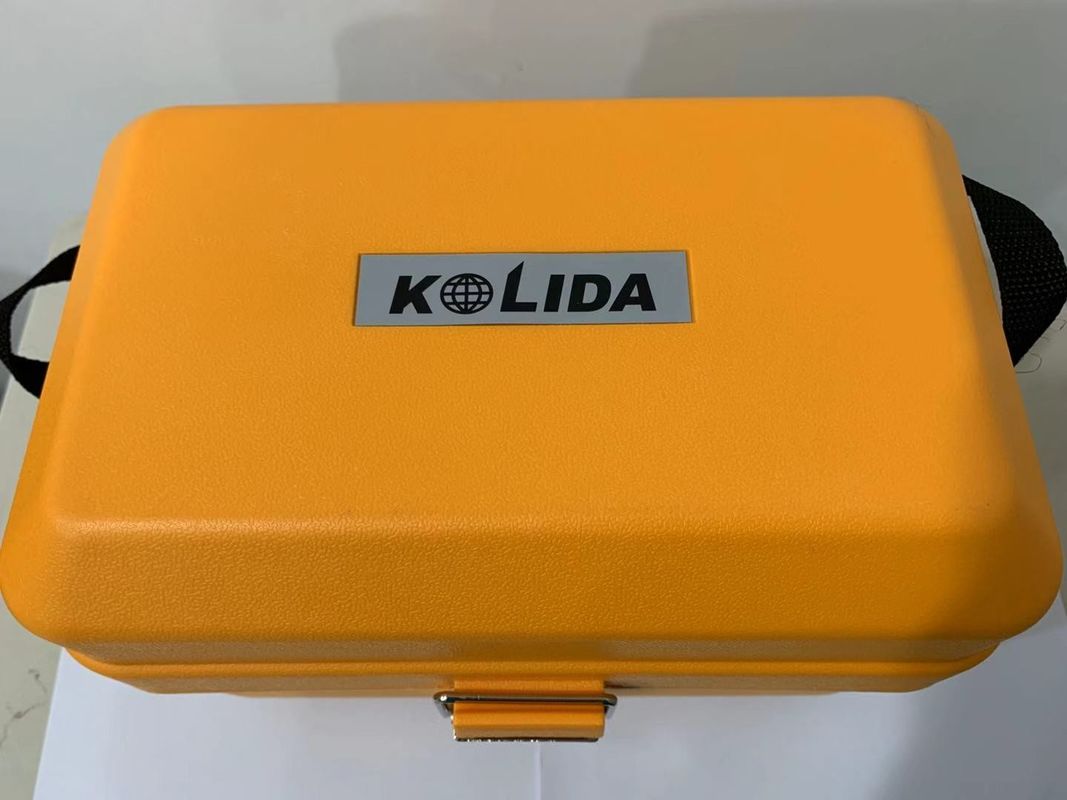

32X Auto Level KOLIDA BRAND KL-32G Magnetic Damping Optical Survey Instrument
Main Features
* Dependable and durable tools for leveling
* 32X magnification, also available in 28x, 24x, 20x.
* Excellent shockproof design
* Magnetic damping compensator
Specifications
| KL-20G | KL-24G | KL-28G | KL-32G | |
| Magnification | 20x | 24x | 28x | 32x |
| Effective Objective Aperture | 34mm | 36mm | 36mm | 38mm |
| Image | Erect | |||
| Field of View | 1°20′ | |||
| Minimum Focus Distance | 0.6m | |||
| Multiplication Constant | 100 | |||
| Additive Constant | 0 | |||
| Compensator Type | Magnetic Damping | |||
| Compensator Range | ±15′ | |||
| Compensator Accuracy | ±0.6″ | ±0.6″ | ±0.6″ | ±0.6″ |
| Standard 1km Deviation | 2.5mm | 2.0mm | 1.5mm | 1.0mm |
| Sensitivity | 8’/2mm | |||
| Circle Graduation | 360° or 400 gon | |||
| Protection Class | IP54 | |||
| Working Temperature | – 20℃ ~ +50℃ | |||
| Storage Temperature | – 40℃ ~ +70℃ | |||
| Net Weight | 1.8kg | |||
